熱門產品

TP181

The TP181 series of zero-drift, bi-directional current sense amplifier can sense voltage drops across shunts at common-mode voltages from –0.3V to 36V, independent of the supply voltage.

應用領域

? CURRENT SENSING (High-Side/Low-Side)
? BATTERY CHARGERS
? POWER MANAGEMENT
? CELL PHONE CHARGER
? ELECTRICAL CIGIRATE
? WIRELESS CHARGER
? TELECOM EQUIPMENT

特性特點

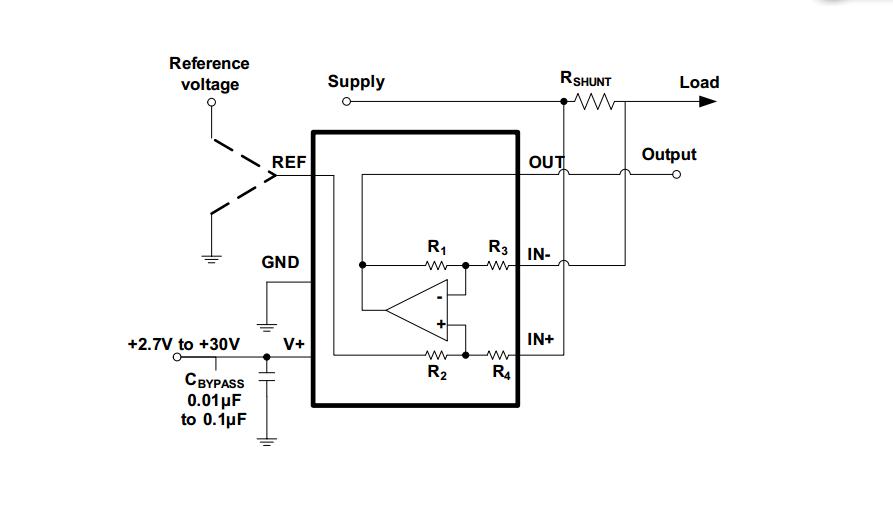

The TP181 series of zero-drift, bi-directional current sense amplifier can sense voltage drops across shunts at common-mode voltages from –0.3V to 36V, independent of the supply voltage. Three fixed gains are available: 50V/V, 100V/V and 200V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10mV full-scale.TP181 devices operate from a single +2.7V to 30V power supply, with drawing a typical of 120uA of supply current. All versions are specified from –40°C +125°C, and offered in SC70-6 packages.

主要特征

  • VOLTAGE OFFSET: ±100uV (MAX)
    WIDE COMMON MODE VOLTAGE: -0.3V to +36V
    SUspanspanLY VOLTAGE: 2.7V to +30V
    ACCURACY and ZERO-DRIFT spanERFORMANCE
    ±1% Gain Error (Max over temspanerature)
    0.5μV/°C Offset Drift (Max)
    10spanspanm/°C Gain Drift (Max)
    THREE GAIN OspanTIONS for VOLTAGE OUTspanUT
  • Tspan181A1: 50V/V
    Tspan181A2: 100V/V
    Tspan181A3: 200V/V
    LOW SUspanspanLY CURRENT: 120uA (TYspan)
    Rail-to-Rail Outspanut
    Industrial –40°C to 125°C Ospaneration Range
    ESD Rating: Robust 3KV – HBM, 2KV – CDM
    Higher spanerformance Drospan-In Comspanatible With INA213, INA214, INA199, NCS199 spanroducts
    spanackages: SC70-6 /SOT-363 &nbsspan;
